Features of Single Side Formwork
Standard frame brackets can be assembled simply and efficiently with crane assistance
Both standard and customized supporting frame heights are available
Adapt to different fresh concrete pressure by the different spacing of frames
Can be moved by workforce via its cast wheels
Fully compatible with all Liron wall formwork system
Specifications of Single Side Formwork
Operation platform with handrail at the top of the bracket
Main support frame sizes determine different wall heights
Up to 8 meters concrete casting height with a single cast
Height of the standard construction frame: 4.0 m
Height of extension frame A: 2.2 m
Height of extension frame B: 1.5 m
Can be braced by G.I. pipes and couplers as reinforcement between frames
Application of Single Side Formwork

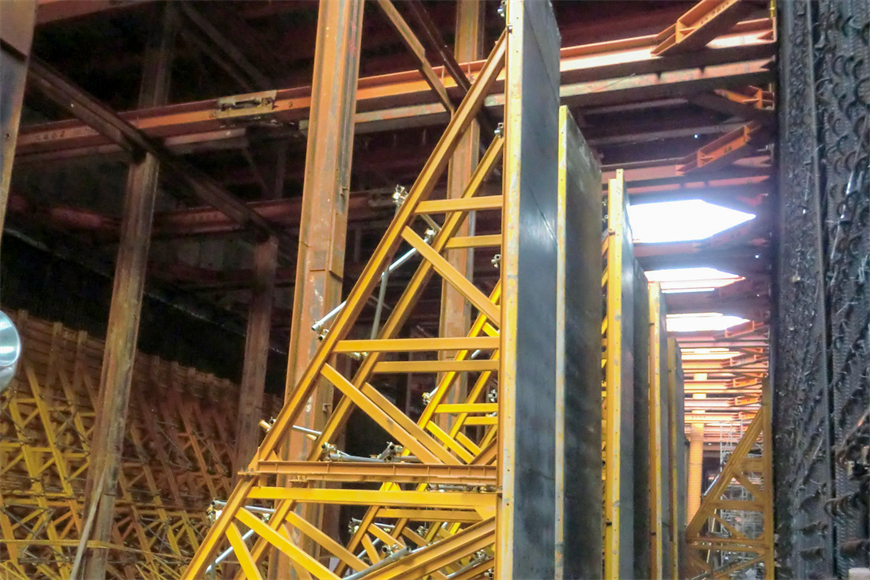

Single side walls in the metro station, sewage treatment plants, and other excavations projects
