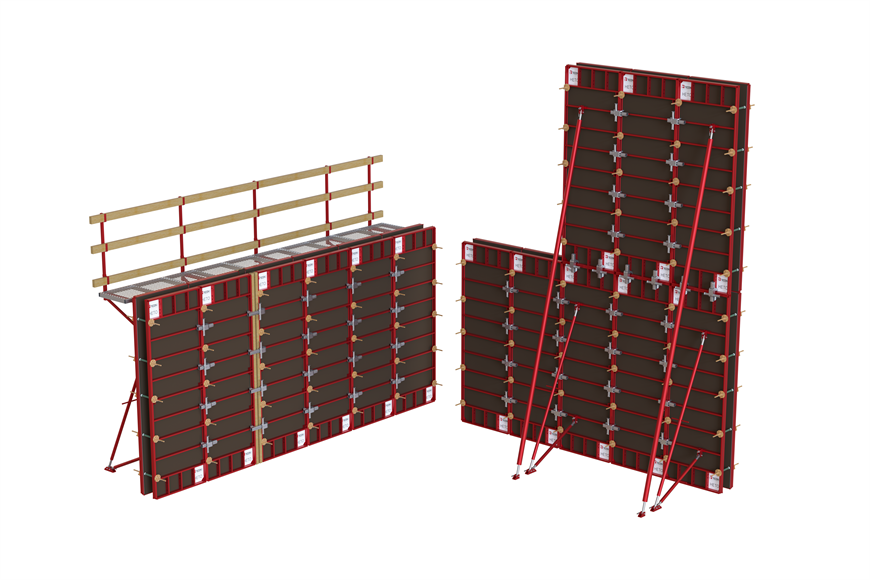

Feature of HETO Frame Wall Formwork
Easy and simple connection via adjustbale alignment clamp for all panel connections
Fast formwork erection output on site with only four panel widths
Small size H panel can be transported and assembled by hand

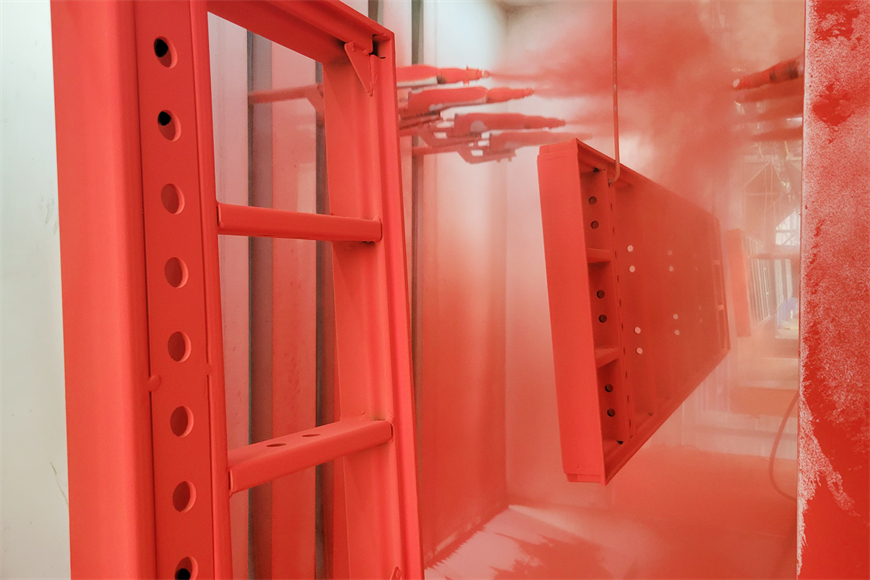

Long service life and easy to clean due to high-temperature powder coated or galvanized frame
Compact size in dimension saves cost and space in storage and transportation
Specifications of HETO Frame Wall Formwork

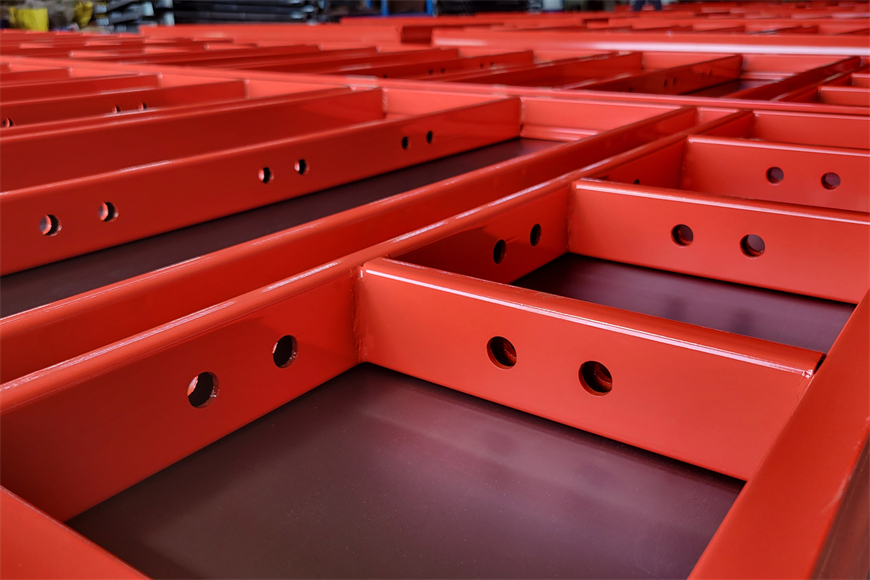

Formwork panel is made from S355 grade steel profile lined with 12mm TECON-Form birch plywood, the depth is only 73mm
Panel width is 1000mm, 750mm, 600mm and 250mm; Panel height is 3000mm, 2700mm, 1800mm and 1200mm
Multifuction HM panel weights around 45kg/sqm; H panel weights around 35kg/sqm
Alignment clamp is adjustable and easy to fasten, matches with timber filler joint up to 85mm width.
Max permissible fresh concrete pressure: 60 kN/sqm
Feature of HETO Frame Wall Formwork
Easy and simple connection via adjustbale alignment clamp for all panel connections
Fast formwork erection output on site with only four panel widths
Small size H panel can be transported and assembled by hand
Long service life and easy to clean due to high-temperature powder coated or galvanized frame
Compact size in dimension saves cost and space in storage and transportation
Specifications of HETO Frame Wall Formwork
Formwork panel is made from S355 grade steel profile lined with 12mm TECON-Form birch plywood, the depth is only 73mm
Panel width is 1000mm, 750mm, 600mm and 250mm; Panel height is 3000mm, 2700mm, 1800mm and 1200mm
Multifuction HM panel weights around 45kg/sqm; H panel weights around 35kg/sqm
Alignment clamp is adjustable and easy to fasten, matches with timber filler joint up to 85mm width.
Max permissible fresh concrete pressure: 60 kN/sqm
