Long life service and lightweight
Higher strength-to-weight ratio than steel and wood
Wood or rubber filler ensures compatibility with plywood
Multiple applications in most formwork system

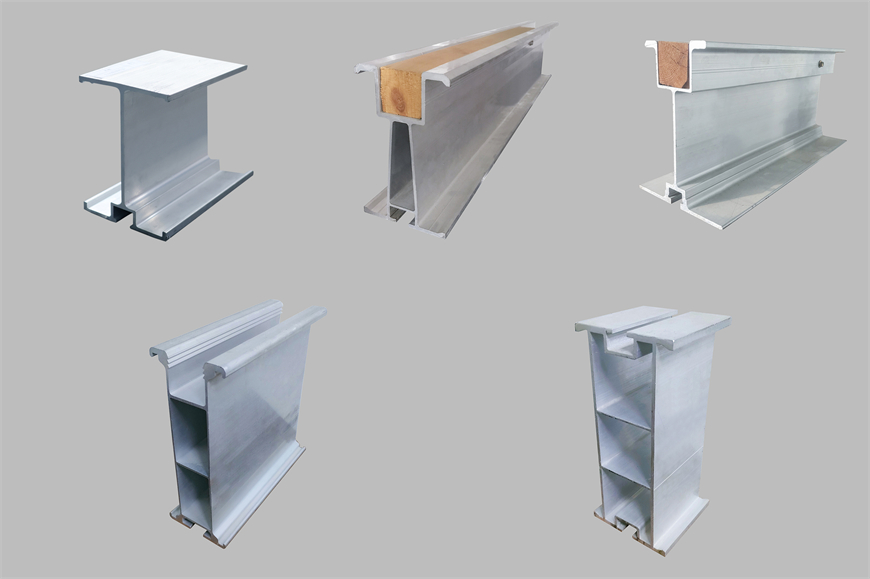

Model | Material | Unit weight(kg) | Remarks |
Aluminium Beam T120 | 6005-T5 | 2.51 | Width:85mm; Height:120mm; TECON Brand or Customized |
Aluminum Beam T140 | 6005-T5 | 3.15 | Top Width:65mm; Bottom Width:58mm; Height:140mm; TECON Brand or Customized |

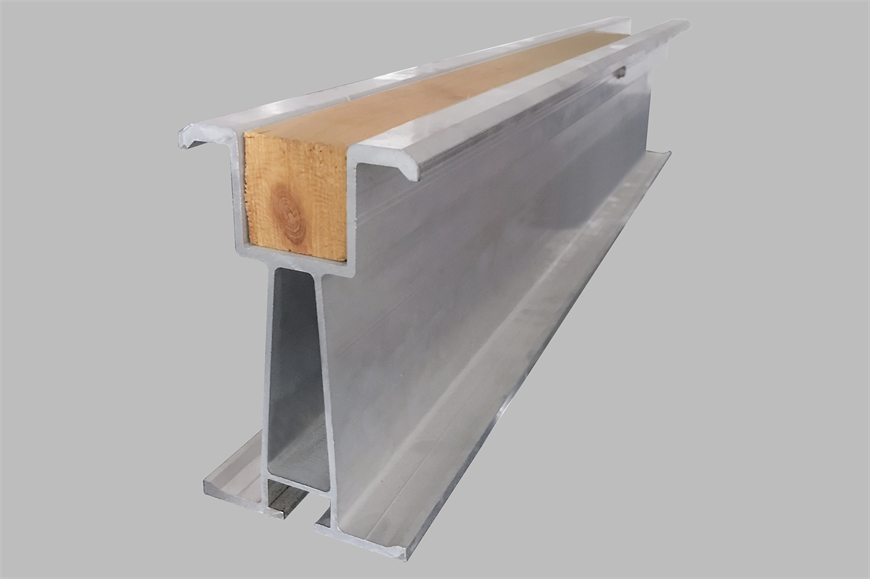

Aluminium Beam T150 | 6005-T5 | 3.90 | Width:90mm; Height:150mm; TECON Brand or Customized |
Aluminium Beam T165 | 6005-T5 | 4.50 | Top Width:81mm; Bottom Width:127mm; Height:165mm; TECON Brand or Customized |
Aluminium Beam T200 | 6005-T5 | 4.97 | Width:76mm; Height:200mm; TECON Brand or Customized |
Aluminium Beam T225 | 6005-T5 | 8.98 | Width:100mm; Height:165mm; TECON Brand or Customized |
As primary and secondary girder of the shear wall, slab and column formwork.
Long life service and lightweight
Higher strength-to-weight ratio than steel and wood
Wood or rubber filler ensures compatibility with plywood
Multiple applications in most formwork system
Model | Material | Unit weight(kg) | Remarks |
Aluminium Beam T120 | 6005-T5 | 2.51 | Width:85mm; Height:120mm; TECON Brand or Customized |
Aluminum Beam T140 | 6005-T5 | 3.15 | Top Width:65mm; Bottom Width:58mm; Height:140mm; TECON Brand or Customized |
Aluminium Beam T150 | 6005-T5 | 3.90 | Width:90mm; Height:150mm; TECON Brand or Customized |
Aluminium Beam T165 | 6005-T5 | 4.50 | Top Width:81mm; Bottom Width:127mm; Height:165mm; TECON Brand or Customized |
Aluminium Beam T200 | 6005-T5 | 4.97 | Width:76mm; Height:200mm; TECON Brand or Customized |
Aluminium Beam T225 | 6005-T5 | 8.98 | Width:100mm; Height:165mm; TECON Brand or Customized |
As primary and secondary girder of the shear wall, slab and column formwork.
